Project alternates

In some cases you might want to propose a set of alternate designs across several wireframes. This might happen if you are reviewing someone else's wireframes and want them to see your proposed design changes throughout the project.

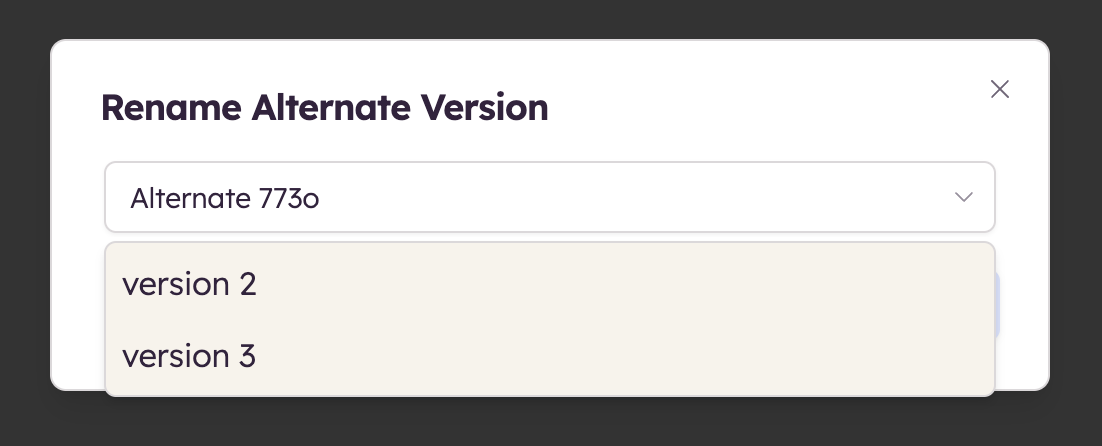

When you rename an alternate, you can choose from a list of existing alternate names in the rename dialog. Selecting another alternate's name groups this alternate with the others of the same name.

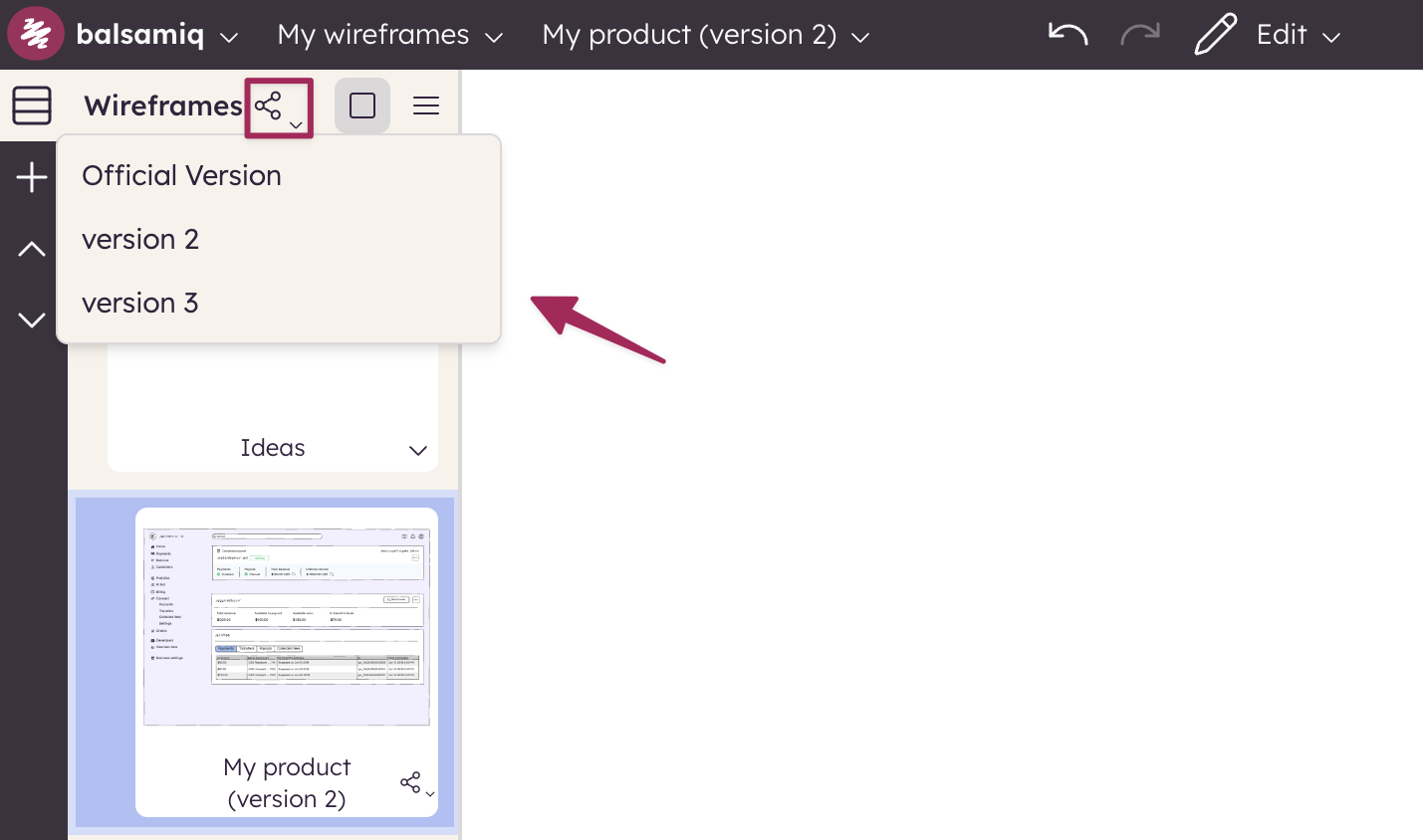

In the Navigator panel, next to the word Wireframes, a menu displays the names of all alternates that appear in your project.

Selecting an alternate from this list will select that alternate in all the wireframes that have an alternate with that name.

This is conceptually similar to creating a branch in a codebase, except that it only applies to wireframes that have specific alternate version names.

So, for example, if you create a series of alternates called "Leon's Proposal" and use the context menu displayed above to select that name, any wireframe with an alternate called "Leon's Proposal" would switch views to that alternate version.
