Exporting to PNG

You can export your wireframes to image files by selecting the Project menu > Export... option (File menu > Export... in Balsamiq for Desktop), or the dedicated keyboard shortcut CTRL/+E, and then the PNG tab from the dialog.

From there, you can generate standard PNG files or high resolution ones, depending on your needs.

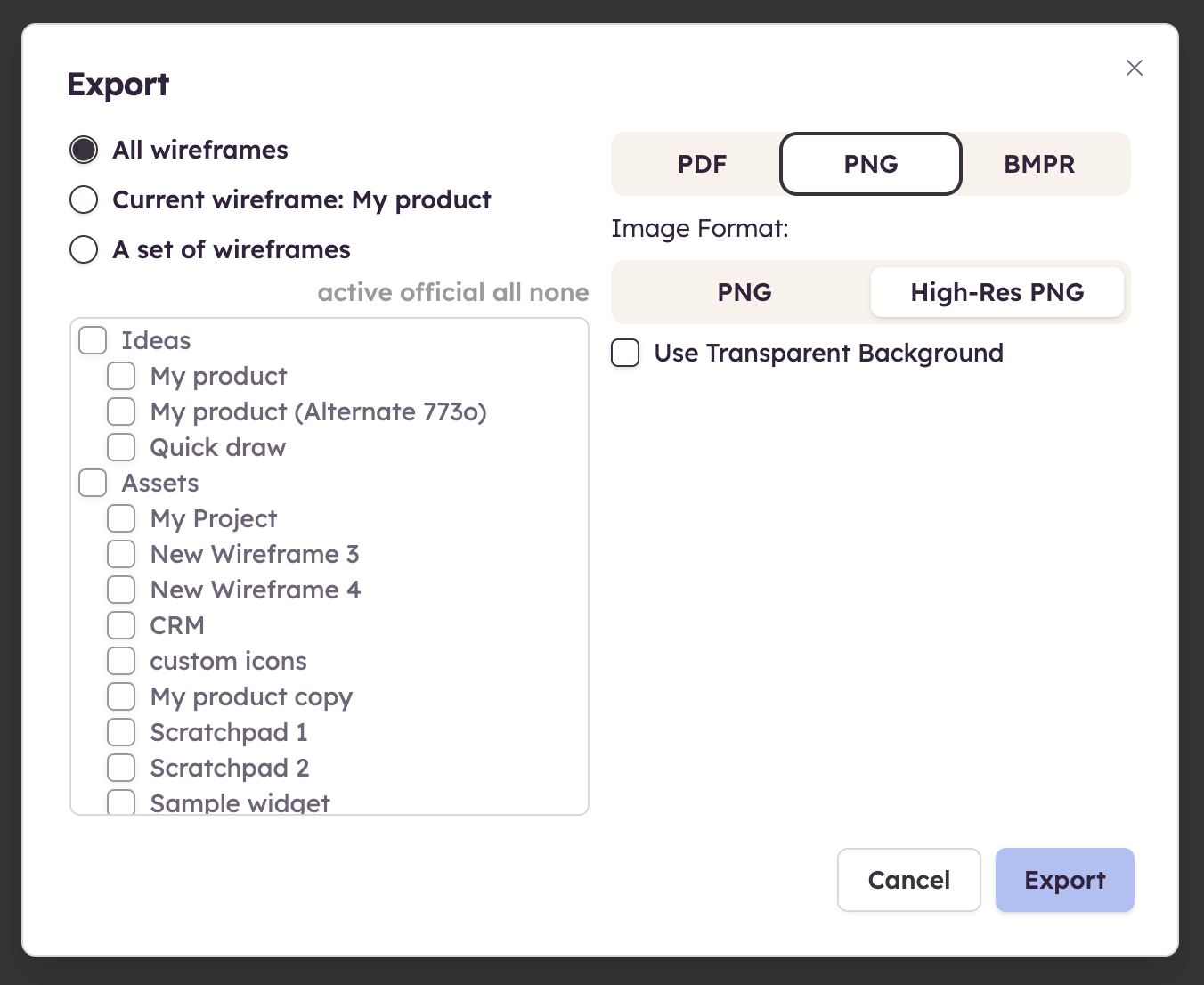

Export all wireframes as PNGs with options for resolution and transparent background

You can choose to export all wireframes, the current one or a specific set, including any alternates you have created.

You can also export a subset of the controls in your wireframe by selecting them on the canvas and using the Export Current wireframe option. The export dialog will ask you if you want to export the entire wireframe or only the selected controls.

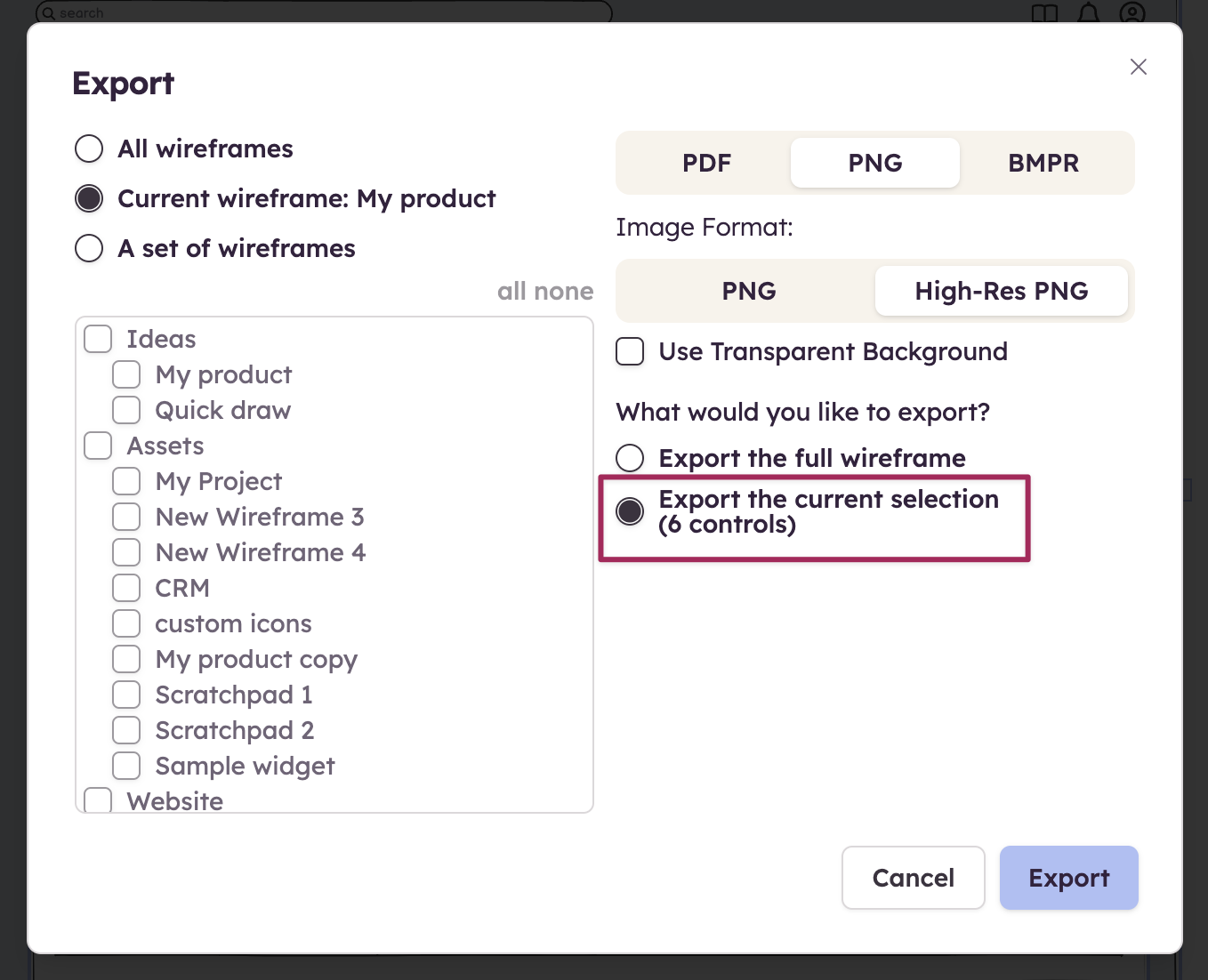

Export selected controls from the current wireframe as PNG for more focused sharing or documentation
